- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series

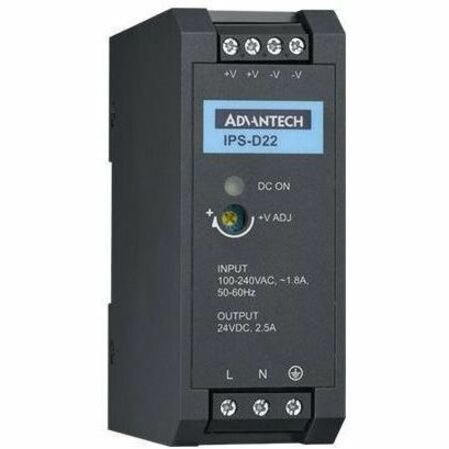

- IPS-D22A60W
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Efficiency
- 88%
- Protection Type
- Over Voltage
- Short Circuit
- Over Current
- Over Temperature
- Features
- LED indicator
- Reliability
- MTBF
- 500000 Hour
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 24 V DC
- Output Voltage Detail
- 24 V DC @ 2.5 A
- Output Current
- 2.50 A
- Output Power
- 60 W
- Input Frequency
- 47 ~ 63 Hz
- Environmental Conditions
- Minimum Operating Temperature
- -4°F (-20°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Physical Characteristics
- Form Factor
- DIN Rail
- Height
- 3.9"
- Width
- 1.5"
- Depth
- 3.7"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Certifications & Standards
- CB
- CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
