- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Packaged Quantity
- 1
- Product Type
- AC Adapter
Power Adapters and Accessories for IMC Devices
Designed and manufactured in the USA, the MiniMc Series extends 10 Mbps and 100 Mbps twisted pair network segments over regular duplex (up to 80 km) or single-strand fiber optics (up to 70 km).
Both a media and data rate converter, MiniMc features 10/100 Auto Negotiation on the twisted pair port while the fiber port operates at 100 Mbps Fast Ethernet full duplex.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Device Supported
- Media Converter
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 85 V AC - 264 V AC
- Frequency
- 50 Hz
- 60 Hz
- Output Voltage
- 5 V DC
- Maximum Output Current
- 2 A
- Physical Characteristics
- Height
- 1.5"
- Width
- 4.5"
- Depth
- 3.9"
- Weight (Approximate)
- 7.20 oz
- Miscellaneous
- Package Contents

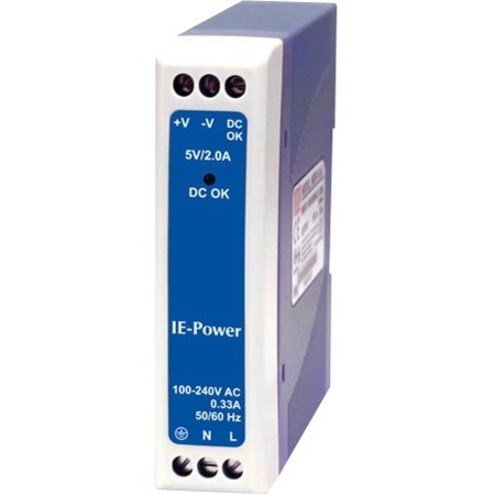

- IE-Power/5V Module (MeanWell, -20)
- 12" Barrel-Connector Power Cable
- Compatibility
IMC Media Converter Series:
- IE-MiniMc
- IE-MiniFiberLinX-II
- Certifications & Standards
- FCC Class B
- UL/cUL
- CE
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
