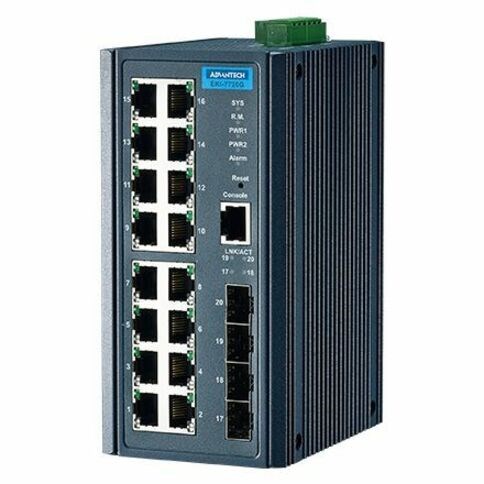

The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. These switches are embedded with Advantech's IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- IP30
- Port Mirroring
- Unicast Storm Control
- Multicast Storm Control
- Link Aggregation
- DHCP Snooping
- Remote Monitoring (RMON)
- Interfaces/Ports
- Total Number of Network Ports
- 16
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1s
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1Q
- IEEE 802.1ad
- IEEE 802.1ab
- IEEE 802.1D
- Management & Protocols
- Manageable
- Yes
- Data Link Protocols
- HTTP
- HTTPS
- Reliability
- MTBF
- 1469341 Hour
- Power Description
- Input Voltage
- 12 V DC
- 48 V DC
- Power Source
- DC
- Power Consumption
- 14.50 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 6"
- Width
- 2.9"
- Depth
- 4.1"
- Weight (Approximate)
- 2.87 lb
- Miscellaneous
- Application/Usage
- Industrial
- Security
- Network
- Server
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
