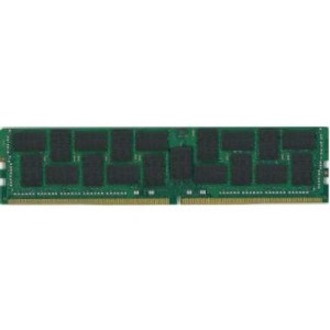

DVM26L2T4/32G is a load-reduced 4Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Dual-Rank. Each rank is comprised of eighteen 2Gbx4 DDR4-2666 SDRAMs.
One EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Line
- Value Memory
- Product Type
- RAM Module
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Memory Speed
- 2666 MHz
- Memory Standard
- DDR4-2666/PC4-21333
- Error Checking
- ECC
- Signal Processing
- Registered
- CAS Latency
- CL19
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Miscellaneous
- Environmentally Friendly
- Yes
