- General Information
- Manufacturer
- Taoglas
- Manufacturer Website Address
- http://www.taoglas.com
- Brand Name
- Taoglas
- Product Line
- Saucer
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk

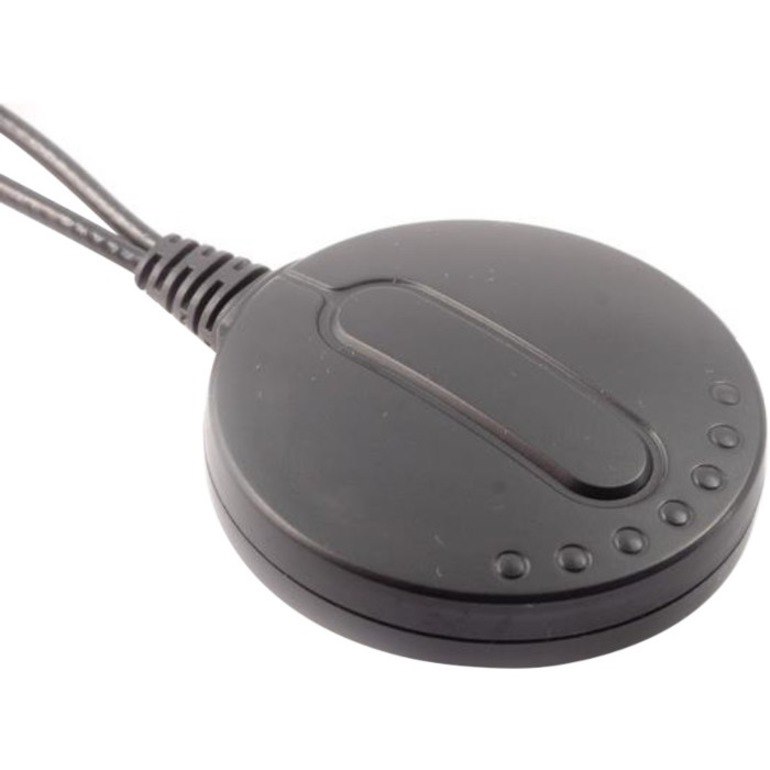

The MA.301 is a combination small form factor high performance GPS and Penta-band Cellular (GSM/CDMA/PCS/DCS/ WCDMA/UMTS) antenna to simplify AVL or Fleet management antenna systems worldwide. It comes with magnet mount as standard. An internal O-ring meets IP-65 waterproof standards. With the strongest GPS and Cellular antenna design team in the industry and rigorous testing Taoglas offers guaranteed performance with your system and your environment.
The standard version comes with 3 metres RG174 cable and SMA(M) connectors for both GPS and Cellular feeds. Cables and connectors are customizable upon request.
- Technical Information
- Operating Frequency Range
- 824 MHz to 896 MHz
- 880 MHz to 960 MHz
- 1850 MHz to 1990 MHz
- 1710 MHz to 1880 MHz
- 1575.42 MHz
- 1900 MHz
- 2100 MHz
- Antenna Gain
- 28 dB
- Interfaces/Ports
- Connector Type
- SMA
- Physical Characteristics
- Product Color
- Black
- Form Factor
- Magnetic Mount
- Weight (Approximate)
- 4.96 oz
- Miscellaneous
- Application/Usage
- Cellular Network
- Outdoor
- GPS
- Package Contents
- Saucer MA301 Magnet Mount GPS & 3G/2G Cellular, SMA(M)
- 3 metres RG174 cable
- SMA(M) connectors
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
